WE310K6-P Evaluation and Development Kit for Wi-Fi IoT

The Telit Cinterion EVB is a rapid IoT development kit. It reduces the duration of IoT prototyping cycles from a matter of weeks or months to mere hours – all by capitalizing on the combination of embedded IoT software and hardware.
The board was designed to provide a complete development environment to the user intended to integrage the Telit WE310K6-P module in the end product.

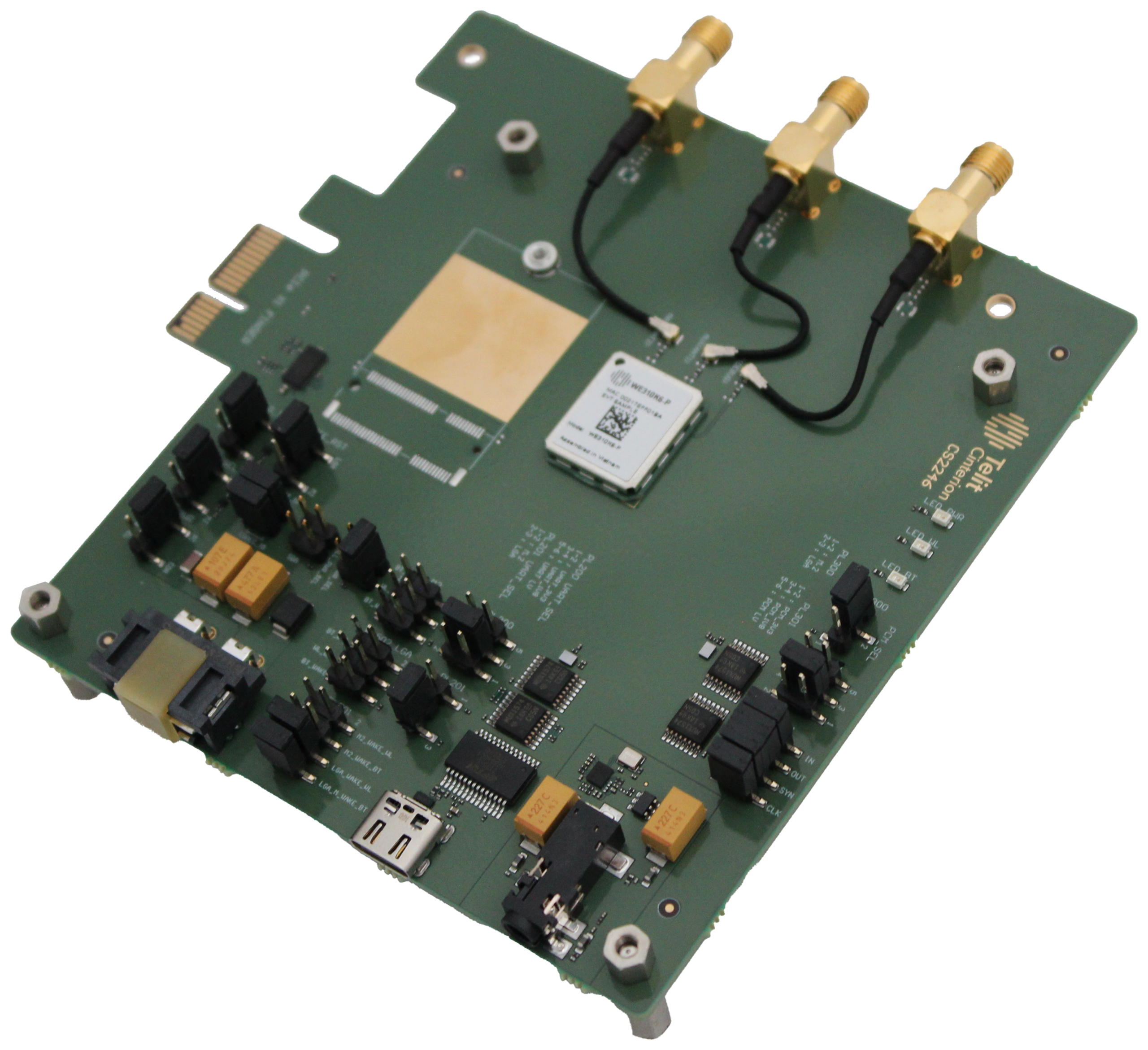

A green board with a number of electronic components on it.

Key Features

This interface is a tool designed for engineers, programmers, and developers.

  • Easy to use, ideal for rapid IoT application design
  • Mounts the WE310K6-P module with Wi-Fi 802.11 a/b/g/n/ac/ax connectivity and BLE 5.2
  • There is provision to mount both WE310K6 LGA module and WE310K6 M.2 card
  • Includes USB-to-UART converter chip to connect the UART interface directly to the host USB port for Bluetooth testing
  • Gives the option to evaluate external antennas via uFL connector
  • Integrate three LEDs and audio Jack
  • Standard PCIe socket Key Type E
  • Power can be supplied from the HOST PCIe slot or external DC power supply
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Request Your Kit from Telit Cinterion Today

We’ve pioneered IoT products and solutions for over 20 years. Start evaluating and prototyping your next IoT connected device.
