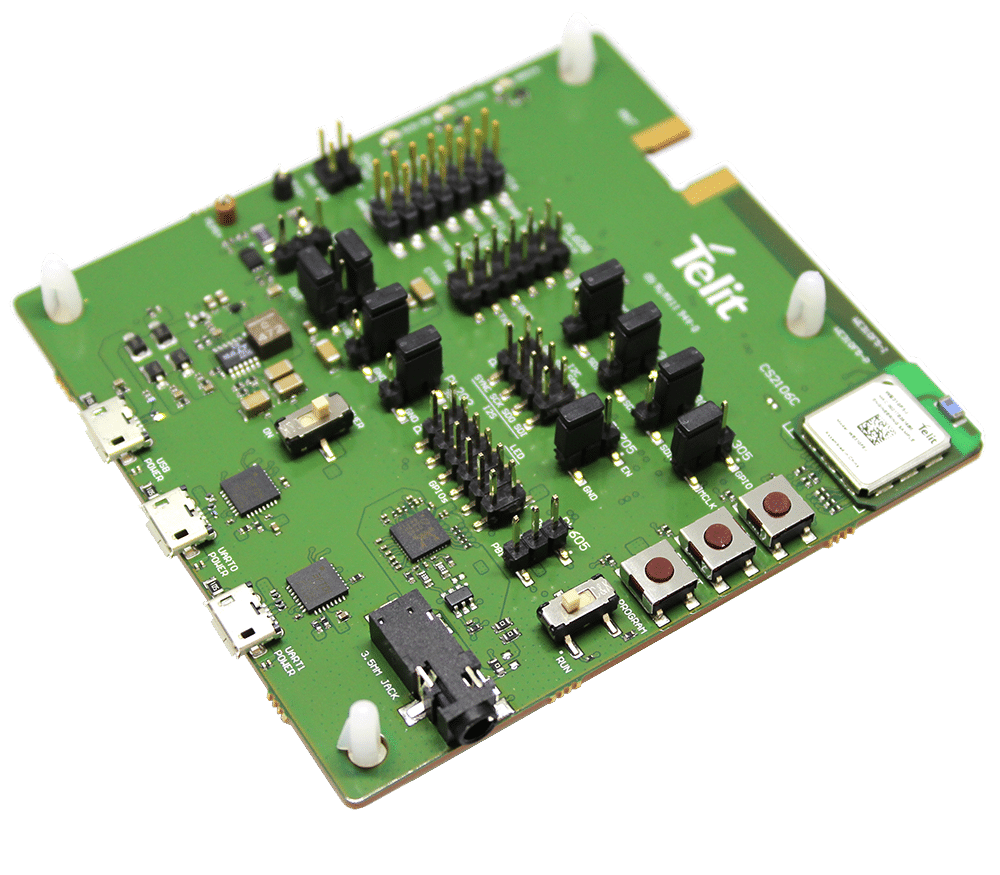

WE310G4-I/P Evaluation and Development Kit for Wi-Fi IoT

This rapid IoT prototyping kit is designed to help developers reduce the IoT prototyping cycles from weeks or months to mere hours, by capitalizing on a developer-structured combination of embedded IoT software and hardware.

Key Features

The WE310G4 kit is a complete development environment for designers and engineers using our WE310G4-I/P module and an Arduino Uno Rev3 board.

  • Easy to use, ideal for rapid IoT application design
  • Mounts the WE310G4-I or WE310G4-P module with Wi-Fi 802.11 a/b/g/n connectivity and BLE 5.0
  • Can be used stand-alone with IoT AppZone application development SDK
  • Can be used as an Arduino shield
  • Built-in 2.4 GHz and 5GHz antenna (WE310G4-I) or SMA connector for external antenna (WE310G4-P)
  • Exposes easy-to-access power measurement points
  • Includes configurable connectors exposing UARTs, USB, SPI, SDIO and GPIOs
  • Integrate three LEDs, two customizable push-button and an In/Out audio jack
User Guides, Documentation, Application Notes and Firmware

Request Your Kit Today

Start evaluating and prototyping your next IoT connected device.
