Evaluate and Test Your IoT Prototypes with Cellular IoT

Our EVB evaluation and development kit lets you evaluate and prototype complete device concepts based on our cellular embedded modules. Combined with a module-specific adapter (sold separately), the EVB exposes module interfaces, allowing you to test your application comfortably.

The EVB includes:

• USB (2.0 and 3.0)
• JTAG
• Power supply and audio connections to the modules
• Two SIM card holders
• microSD memory card socket
• The ability to switch mode power supply with an external AC adapter and USB to a serial converter

Expansion connectors allow connecting ancillary boards (e.g., an Ethernet adapter or audio codec) and support future add-on cards using high-speed interfaces. EVB also features On/Off, Reset and SHDN system controls, two LED indicators and I/O connectors (e.g., serial signals, GPIO, SPI, I2C and DVI).

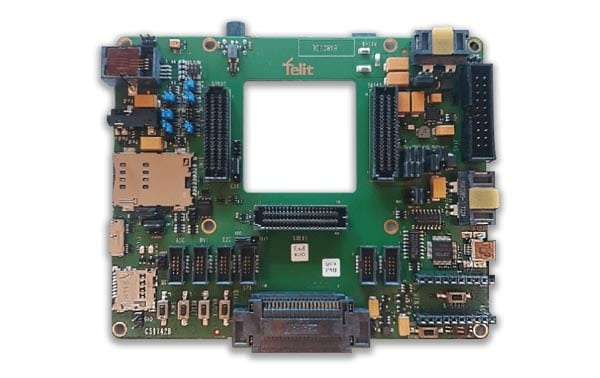

The EVB development kit includes:

• Main board
• Socket for target embedded module interface board*
• Power supply adapter and power cable
• Micro USB cable
• Mini USB cable
• Cellular antenna

Complete the form to get your EVB device development kit for your IoT application today!

Download EVB Device Development Kit Quick Start Guide

*Must request one or more adapter boards according to needs. Contact your Telit Cinterion sales representative to order a suitable adapter board.
